Fire Chief Wood Furnace

Fire Chief Wood Furnaces

Put an end to your worries and keep warm this winter and for many winters to come with one of our

Bright Red Fire Chief Wood and Coal Burning furnaces. Designed for maximum efficiency with our unique 360° Roller Grate and a Secondary Combustion Chamber - each furnace is pre-wired for easy installation, constructed of Heavy Gauge Steel and Cast Iron for strength and durability.

Comfortably heats 1500-5000 square feet depending on model.
A Natural Fuel Heating System

Fire Cheif Brochure for FC500, 700, & 1100

Owners Manual for FC500. 700 & 1100

Fire Chief 300 Brochure

PLEASE CALL OR EMAIL FOR SPECIALS

We will try to beat your best price. Please specify model and your zip code and your best price.

Model	300	500	700	1100
Weight	250 lb. approx.	525 lb. approx.	600 lb. approx.	750 lb. approx
Height	40.5"	55"	55"	55"
Width	20"	26"	26"	26"
Depth	24"	26"	31"	39"
Log Size	22"	21"	27"	33"
Fire Chamber Volume	4.00 cu. ft.	5.00 cu. ft.	7.00 cu. ft.	11.00 cu. ft.
BTU's (maximum)	80,000 approx.	100,000 approx.	150,000 approx.	200,000 approx.
Heating Capacity	Approx 700-1000 sq.ft	Approx 1500-2000 sq.ft	Approx 2500-3500 sq.ft	Approx 5000 sq.ft
Door Size	13"x14"	13"x14"	13"x14"	13"x14"
Flue Size	6"	6"	6"	8"
3-Speed Blower Capacity	490 CFM	1150, 1500, 1800 CFM	1150, 1500, 1800 CFM	1150, 1500, 1800 CFM
Plenum Size	8" Round	12" Round	12" Round	12" Round
Warranty - Firebox	5 Year limited	5 Year	5 Year	5 Year
Warranty - Grates and Casting	5 Year limited	Lifetime	Lifetime	Lifetime
Price	$ 1,149	$ 1,989	$ 2,385	$ 2,625

**Shipping Included For Most Continental U.S.

**Shipping NOT Included for Fire Chief 300

The 300 model does not have a cold air return filter box.

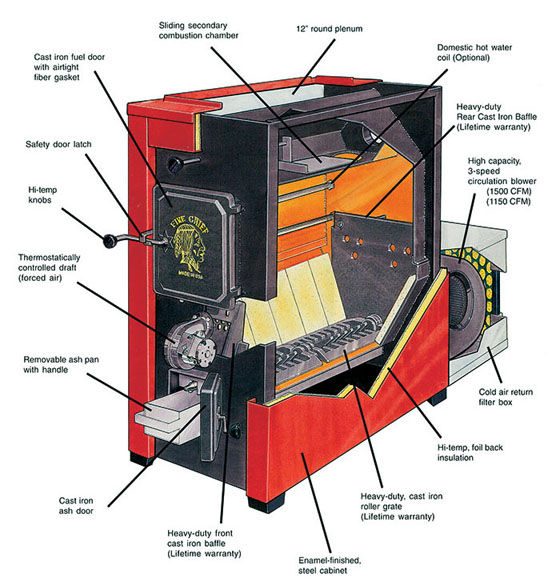

• Construction - High Grade, heavy (7 & 10) gauge steel is continously welded for maximum structural strength.

• Secondary Combustion Chamber - Increases fuel efficiency while reburning smoke and wood gases before they are vented up the chimney.

• Cold Air Return/Filter Box - Standard equipment on all Fire Chief furnaces, this box filters the system air as well as connecting a cold air return duct necessary for good installation

• Cast Iron Baffle - Directs the combustion air flow below and above the cast iron grates creating the maximum fire temperature for every pound of fuel. Comes with a lifetime warranty. • Cast Iron Roller Grate - Designed to roll 360 degrees from either direction, allowing fine ash to drop into ash pit and leaving hot coals in fire box. Comes with a lifetime warranty.

• Thermostatically Controlled Draft - Adds convenience and comfort to fully automatic electrical components.

• 3-Speed Blower - This motor allows for gentle circulation of air when heating requirements are low and high output when heating requirements are high.

• Pre-Wired Electrical System - Fully automatic components are pre-wired for your convenience and to reduce electrical installation time and expense.

Standard Features:
Pre-Wired Electrical System
3-Speed Fan with Speed Control
Cold Air Return and Filter Box
(uses standard 25" X 18" X 1" Filters)
Cast Iron Roller Grate
Thermostatically Controlled Draft

Optional Water Coil with Hole Saw available for $175.00

Optional Back Draft Damper available for $40.00
