HMF100 Napoleon Hybrid Furnace
Napoleon Heating & Cooling is proud to be committed to your total home comfort. Time after time, Napoleon has led the way with new and innovative, patented technology that continually surpasses industry standards. More than anything we want you to feel confident in choosing Napoleon for your home, our products are designed to provide that confidence and ensure that every Napoleon Product is beyond compare.
Napoleon's Hybrid 100 furnace is an extremely clean burning wood furnace, with an efficiency rating of 86% and EPA emissions of 3.6 grams per hour. The Napoleon Hybrid 100 is one of the cleanest and most efficient combination solid fuel burning furnace on the market today.
- Photos (1)
- Add Review
Go away for an extended period without worrying about keeping your wood furnace operational. The Napoleon® Hybrid Series furnaces switch from wood to the supplementary heating source (electric for the HMF100, electric, oil and gas for the HMF150 and HMF200) automatically. If the furnace runs out of wood, a second thermostat controlling the optional electric, oil or gas components will keep your home warm and toasty even if you are not at home, without any interruptions. Even with power failures, the furnaces (wood only) are designed to use gravity air flow for emergency heating. High fire can be maintained by using a manual override on the primary air control.
HMF 100 Features:
- Firebox capable of handling 18” long wood
- Heats up to 1400 sq ft
- Certified to EPA standards at 3.6 g/hr
- 1.9 cubic foot firebox capacity
- Average output of 40,000 BTU/hr
- Optional 10kW Electrical Furnace Modules
- Switches automatically from primary wood burn to electric module
- Available with glass door
- Cleaner combustion promoted by 4 separate stainless steel secondary air tubes

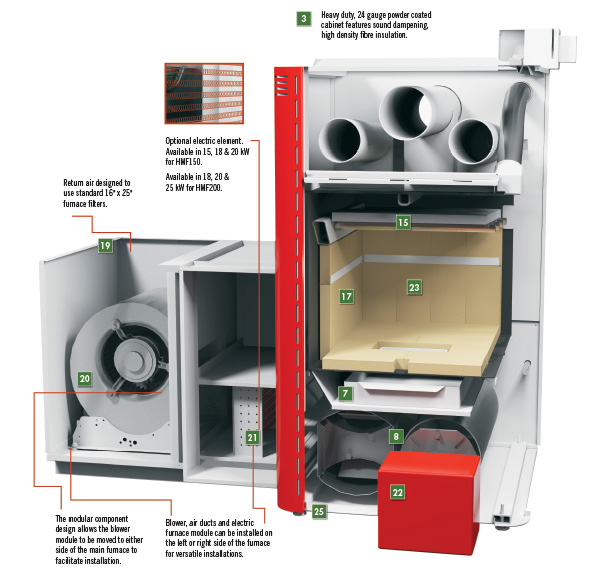

Modular design allows for easier/more
flexible installations (Three return air positions)
Can be configured as Wood only Furnace or Wood
Solid Construction and Automatic Combustion Control
Hybrid Series furnaces come standard with a fully welded and refractory brick lined combustion chamber, similar to a kiln, for many years of safe and trouble free performance. The thermostat sets the desired heat level for a roaring fire and then shuts down for a long, clean and consistent burn. A Bypass Exhaust Damper built into the HMF150 and HMF200 ensures quick and clean start ups.

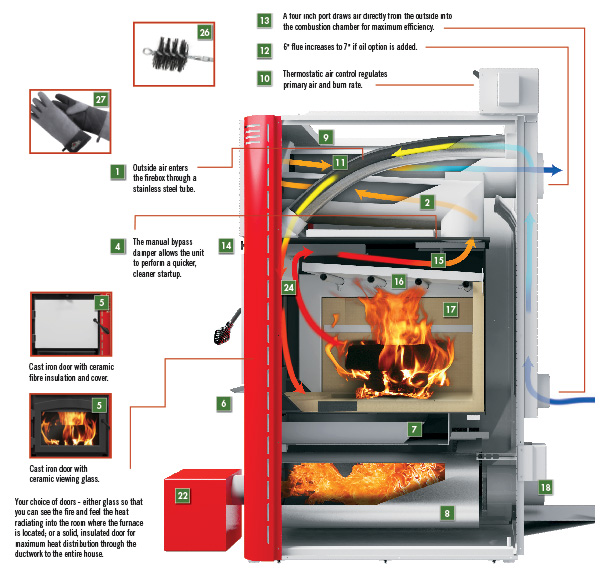

Advanced Combustion System
A stainless steel tube combustion system achieves a secondary burn cycle. Not only are you getting energy from the wood, but also from the wood gases which are mixed at the precise ratio of temperature and oxygen. To achieve an extraordinary clean burn without a catalytic combustor, horizontal jets of super heated secondary air are mixed with the fire’s smoke to burn off released smoke particles. You can watch the torch-like secondary flames just below the ceiling during the burn. This results in more heat, cleaner exhaust, fast start up, less chimney maintenance and less trips to the woodpile.
|Specifications||HMF100 Hybrid Wood Furnace|
|Maximum Input Capacity (Wood)||76,000 BTU's|
|Maximum Output Capacity (Wood)||65,000 BTU's|
|Average Output Capacity (Wood)||35,000 - 40,000 BTU's|
|Optional Oil Furnace Module (Input)||-|
|Electric Furnace Module (Optional)||10KW|
|Efficiency (Wood) (Maximum)||86%*|
|Emissions (Wood)||3.6 grams/hr (EPA)|
|Blower - 4 speed||500 - 700 CFM|
|Recommended Exhaust Pipe Size (Wood only)||6"|
|Type of Chimney||High Temperature|
|Maximum Log Length||18"|
|Loading Capacity||2.0 Cubic Feet|

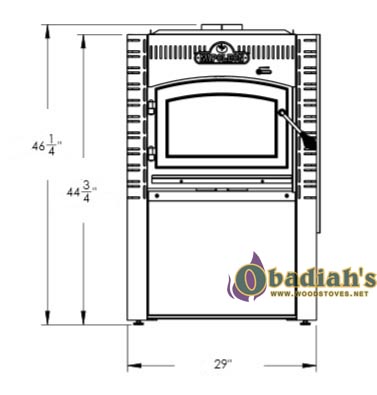

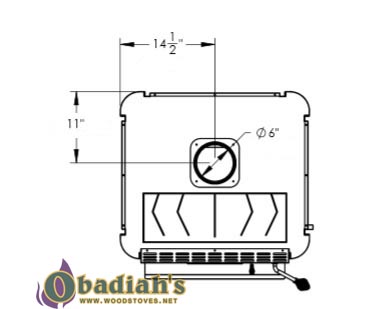

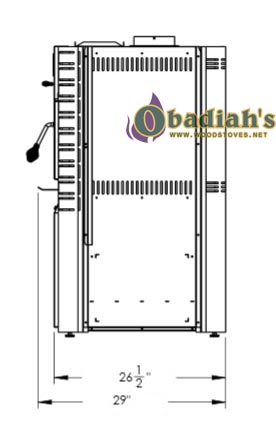

|Furnace Dimensions (with Blower)||29"W x 29"D x 45"H|
|Minimum Clearance to Combustibles||6" Back & Sides; 48" Front|
|Firebox Dimensions||20-7/8"W x 14-5/8"D x 11-5/8"H|
|Firebox Front Opening||17-1/8"W x 9-1/2"H|
|Hot Air Plenum Dimensions||22"W x 7-1/2"H|
|Cold Air Plenum Dimensions||14"W x 10"H|
Please call or email for information regarding Napoleon products. Please specify the model you are interested in and your zip code.
