Osburn 1800 Bay Window Insert

Osburn 1800 Bay Window Wood Insert

Features:

Options:

1800 Bay Window Insert	Retail	Our Price

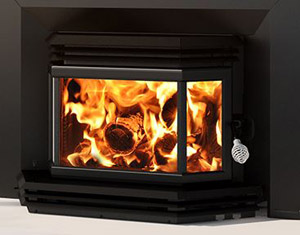

Painted door	$1,709	$1,367

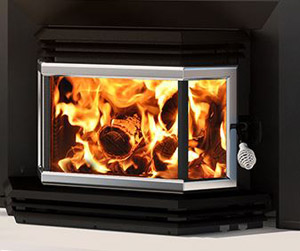

Gold door	$1,789	$1,431
Must order faceplate to complete

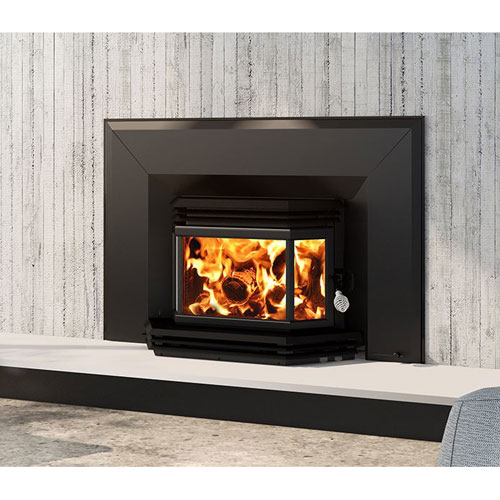

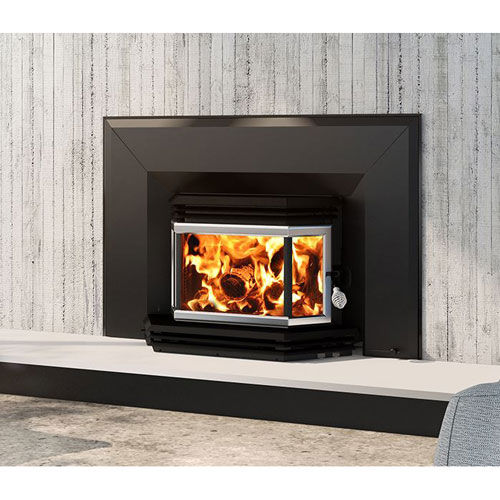

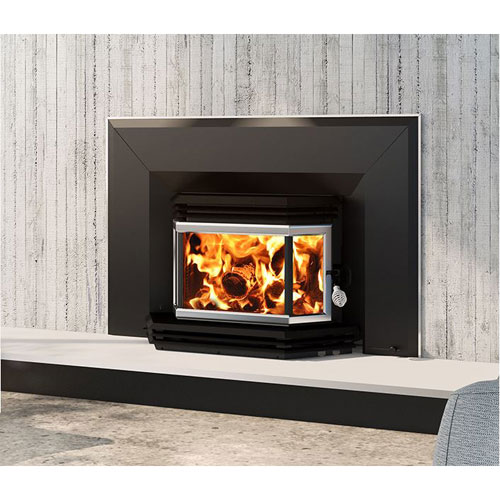

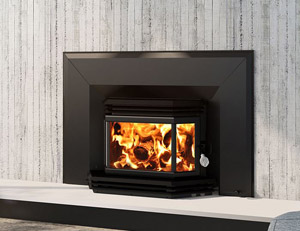

Regular (29 x 44)		$230

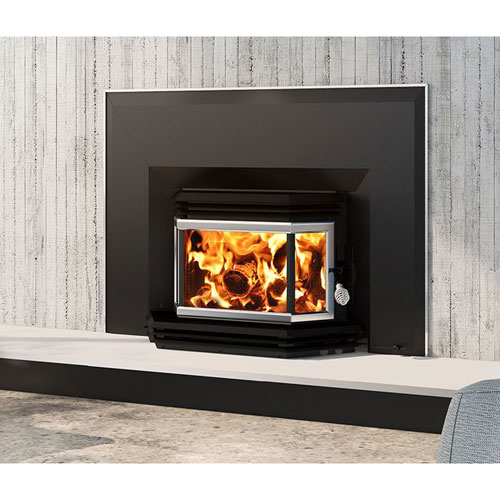

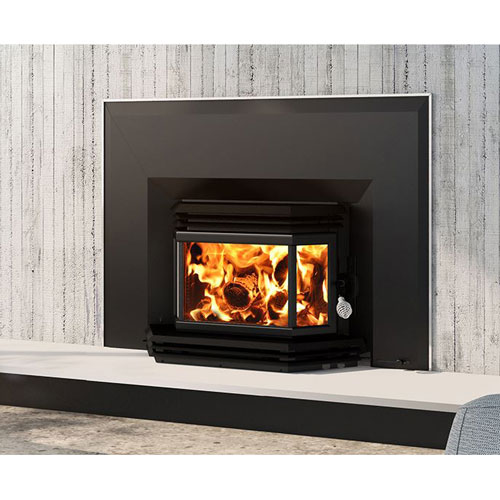

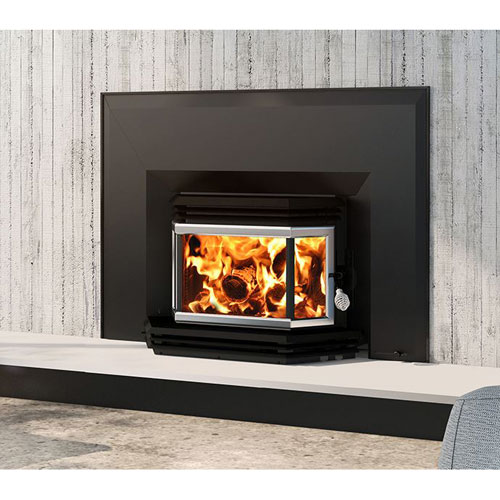

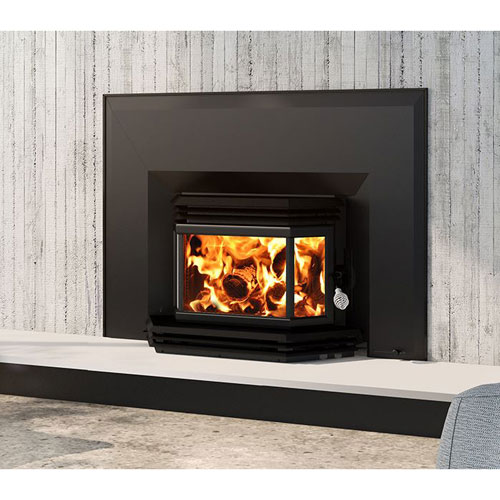

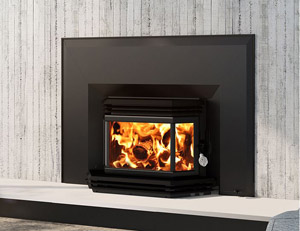

Medium (32 x 44)		$250

Specifications
Type of fuel	Wood
Recommended surface	500 to 1,800 sq.ft.
Blower	100 cfm
Max. BTU - EPA test wood	36,300 BTU/h.
Max. BTU - seasoned cord wood	65,000 BTU/h.
Color	Metallic black
Minimum fireplace opening	Width: 25.25" Depth: 15.25" Height: 19.25"
Exterior dimensions	Width: 23.0" Depth: 25.75" Height: 19.0"
Exhaust pipe diameter	6"
Firebox dimensions	Width: 11.5" Depth: 14.5" Height: 17.0"
Log positioning	Over width
Maximum log length	16"
Door opening dimensions	Width: 16.5" Height: 8.5"
Minimum clearances to combustibles (Data expressed in inches. 1 inch = 25.4 mm)
Combustible side wall to unit	17"
Combustible side mantle to unit	10"
Combustible top mantle to unit	14"
Combustible shelf to unit	22"
Min. floor protection in front of unit	16"
Projection in the room min / max	10.5" / 10.5"
Glass surface	215 po. ca.
Weight	315 lbs (143 kg)
Warranty	Limited lifetime
Test standard- safety	ULC S-627 / UL 1482
