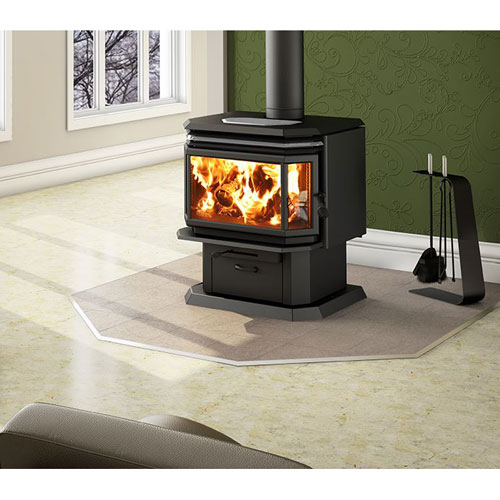

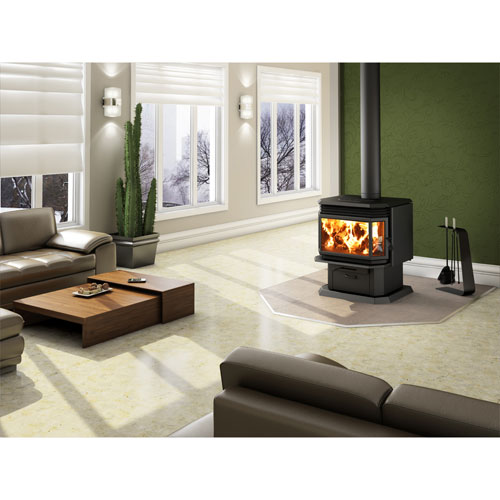

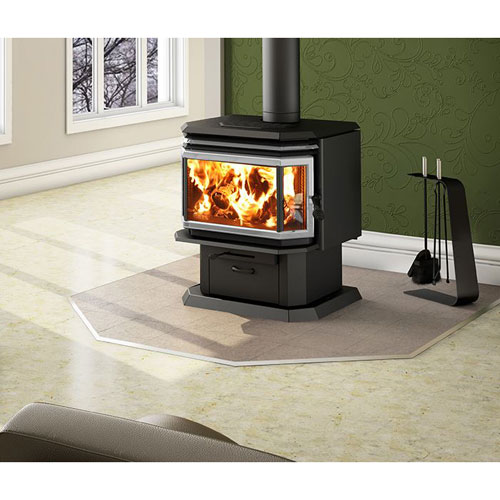

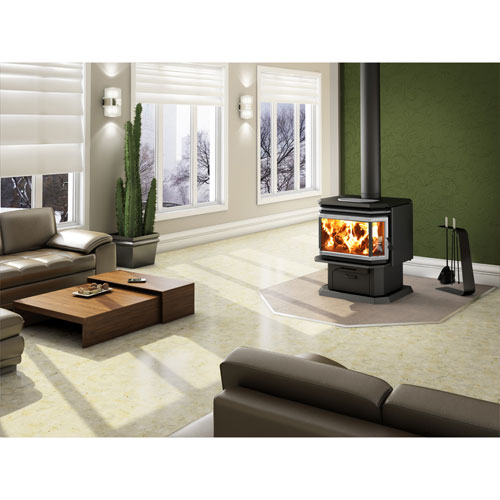

Osburn 2200 Bay Window Woodstove

Show with nickel door and louvers


Features:

  • 75,000 BTU/h.
  • Heating capacity: 500 to 2,000 sq.ft.
  • Firebox volume: 2,2 cu.ft.
  • Maximum log length: 18"
  • Adjustable handle
  • Self-cleaning glass system
  • Ash drawer with safety lid
  • Mobile home approved
  • Tested by OMNI as per applicable standards (CSA/UL/ULC and/or others)

Options:

  • Black, gold or brushed nickel plated door overlay
  • Black, gold or brushed nickel plated trivet and trims
  • 130 cfm blower
  • Fresh air kit for mobile home

Owner's Manual


Osburn 2200 Bay Window Stove Retail
Stove Body - black door $1,929
Stove Body - gold/nickel door $2,059
Requires the addition of a trim kit to complete package.
Black louvre assembly & black trivet $120
Gold accented louvre assembly and gold plated trivet $180
Brushed nickel accented louvre assembly and brushed nickel trivet $180
Ultra-Quiet 130 CFM Blower/Fan $230
Adapter for fresh air kit $55
Insulated pipe for fresh air kit $30

Specifications
Type of fuel Wood
Recommended surface 500 to 2,000 sq.ft.
Maximum output - EPA test wood 30,400 BTU/h.
Maximum output - seasoned cord wood 75,000 BTU/h.
Color Metallic black
Exterior dimensions Width: 25.62"
Depth: 25.75"
Height: 30.62"
Exhaust pipe diameter 6"
Type of chimney 2,100 deg. F (650 deg. C)
Recommended chimney diameter 6"
Minimum chimney height 12'
Firebox dimensions Width: 19.0"
Depth: 17.0"
Height: 11.5"
Log positioning Over width
Maximum log length 18"
Door opening dimensions Width: 19"
Height: 9"
Type of door Ceramic glass
Glass surface 265 sq.in.
Weight 442 lbs (201 kg)
Warranty Limited lifetime
Test standard - safety ULC S-627 / UL 1482
Test standard - emissions EPA Method 28

Minimum clearances to combustibles (Data expressed in inches. 1 inch = 25.4 mm)

USA
Canada
  Single walled pipe Double walled pipe Single walled pipe Double walled pipe
Back 13.5" 6" 13.5" 6"
Sides 17" 20.5" 17" 20.5"
Corners 10" 3" 10" 3"
