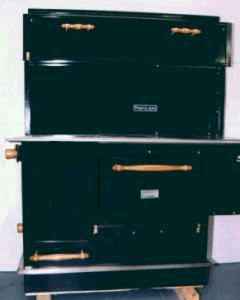

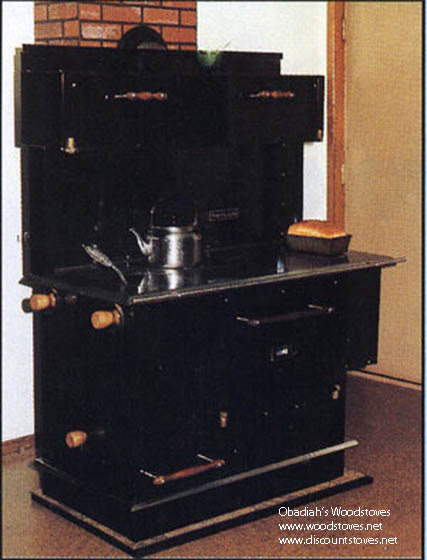

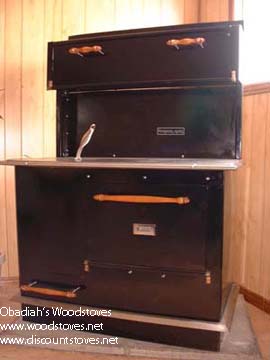

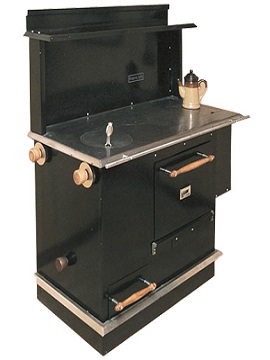

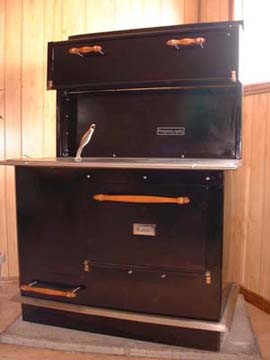

Pioneer Maid Cookstove
  • Over night burn
    The Pioneer Maid easily holds a fire all night or longer, no fire to kindle in the morning just turn the stove on!
  • Fingertip Control
    The Pioneer Maid offers a degree of control undreamed of by grandmother. A simple twist of the twin air intake and the fire leaps to life. A twist in the reverse direction and it is almost instantly dampered down.
  • Large Firebox
    The large size of the firebox permits stoking the fire for longer periods, as well as cutting down on splitting of wood.  The firebox is top loading only through the lid on the cooktop.
  • Quality Lining
     The refractory brick liner in the firebox is thicker and stronger, custom molded to our specifications.
  • Welded Construction
    Most cookstoves are built of such lightweight materials that they need to be held together with screws, in contrast the Pioneer Maid is welded steel throughout for a lifetime of trouble free maintenance.
  • Smooth Top
    A single piece top with only 2 large 11 inch lids make cleaning the top easier.




  • Down Draft Efficiency
    For years cookstoves have been notoriously inefficient. Not so the Pioneer Maid. Users report cutting there fuel consumption up to one-half.
  • Roomy Oven
    The oven not only heats quickly, it holds an even heat for longer periods of time, and is easily controlled, but has a capacity for 8 loaves of bread.
  • Porcelain Finish
    The entire stove exterior is clad in baked on porcelain for better looks and easier cleaning.
  • A Space Heater
    The Pioneer Maid doubles as a space heater when the oven door is open, thus converting the oven into a ready made heat exchanger, unbelievably efficient. Will heat approximately 2,000 square feet.
  • High Back And Shell
    A high back and sturdy shelf provide convenient storage for the items you like to have handy when cooking and baking.

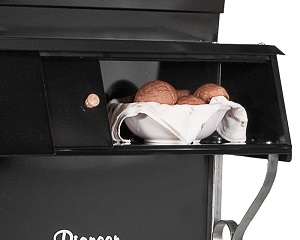

  • Warming Closet
    An optional warming closet also available to keep food warm until meal time. 10" x 10" x length of stove.
  • Durable Stainless Steel
    Almost 50% of the stove body itself (excluding the top) is made of stainless material that should never rust or corrode.
  • Standard Features
    In addition to the features no other cookstove can match, the Pioneer Maid offers many of the standard ones as well, such as an ash pan for easy clean out, stay cool wooden handles and knobs and handles, black porcelain finish, spring-loaded oven door, oven thermostat, internal flue damper, and optional hot water coil and a reservoir (capacity 10 U.S. gallons).
Specifications: With Reservoir  Without Reservoir
Dimensions
Length  52" 43"
Width 28 ½ " 28 ½ "
Height 53 ½ " 51 ½ "
Cooking Surface
Length  50" 41"
Width  22 ½ " 22 ½ "
Height 32 ½ "  32 ½ "
Oven Dimensions
Depth 22" 22"
Width  19 ½ " 19 ½ "
Height 13" 13"

Clearances To Combustibles

Front 48"
Rear 25"
Left Side 25"
Right Side 18"

Fire Box  Dimensions With Reservoir Without Reservoir
Length  18 ½ " 18 ½ "
Width 11 ½ " 11 ½ "
Depth 18  ½ " 18  ½ "
Flue
Size Round  7" 7"
Location rear rear
Shipping
Weight
623 lb.. 570 lb..
Approximate
Area Heated
2,000 sq. ft  2,000 sq. ft

Pioneer Maid Cookstove Pricing (please call or email for a shipping quote. Please state your city, state and zip code, along with the model of the stove)

Prices
Stove with Shelf Only $1,850
Stove with Warming Closet $1,985
Stove with Water Reservoir $2,000
Stove with Water Reservoir and Warming Closet $2,170

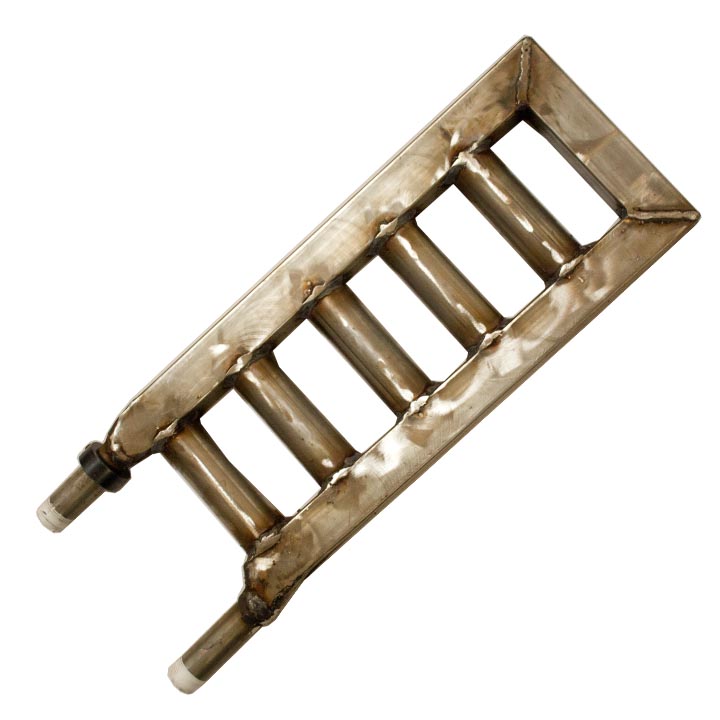

Stainless Water Coil $75
